MCP8021/22 3-Phase Motor Gate Drivers With Functional Safety Support

3-Phase Motor Gate Drivers With Built-In Safety Features and Functional Safety Support

Our MCP802x family of 3-phase Brushless DC (BLDC) motor gate drivers with a power module contains three integrated half-bridge drivers and is capable of driving three external N-type Metal-Oxide-Semiconductor (NMOS)/NMOS transistor pairs. The three half-bridge drivers can deliver a peak output current of 0.5A at 12V for driving high-side and low-side NMOS MOSFET transistors. The MCP802x motor driver family of products features many built-in safety features and functional safety support.

Featured Products

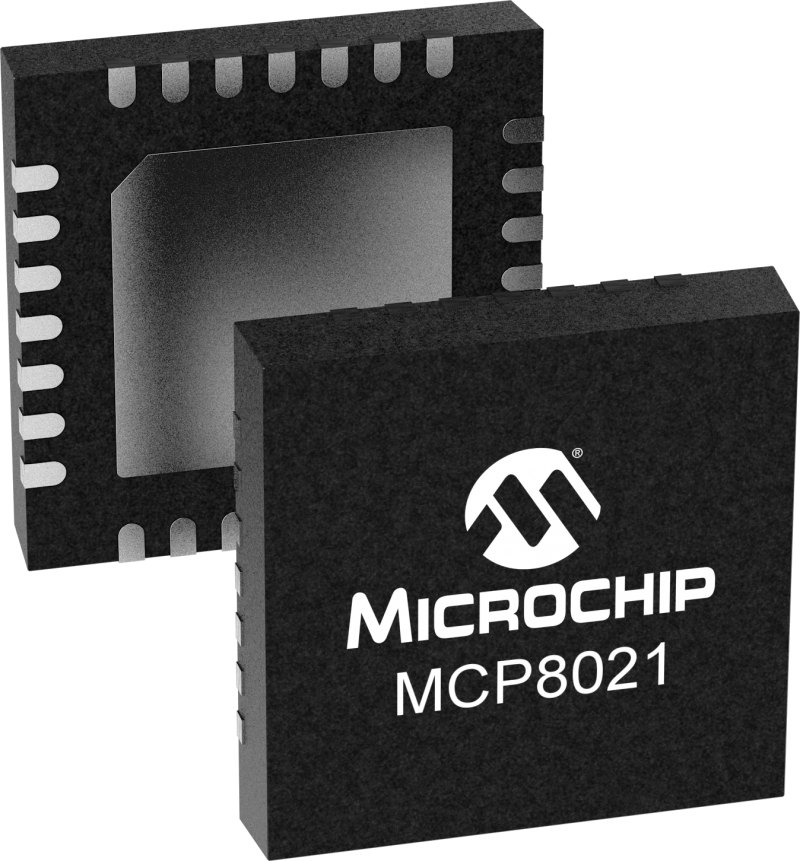

MCP8021

  • Supply voltage range: 4V to 40V
  • Built-in safety features
  • Temperature range (TJ): −40°C to +165°C
Explore MCP8021

MCP8022

  • Supply voltage range: 4V to 40V
  • Built-in safety features
  • Temperature range (TJ): −40°C to +165°C
  • Three independent operational amplifiers for general use
Explore MCP8022
  • Automotive applications including fuel, water and oil pumps, ventilation motors, window lifts, trunk openers and sun roofs
  • Home appliances
  • Permanent Magnet Synchronous Motor (PMSM) control
  • Hobby aircraft, boats and vehicles
  • Functional safety support
  • AEC-Q100 Grade 0 qualified
  • Supply voltage range: 4V to 40V
  • Three half-bridge drivers configured to drive external high-side NMOS and low-side NMOS MOSFETs
  • Independent input control for high-side and low-side NMOS MOSFET gate drives
  • Built-in safety features
