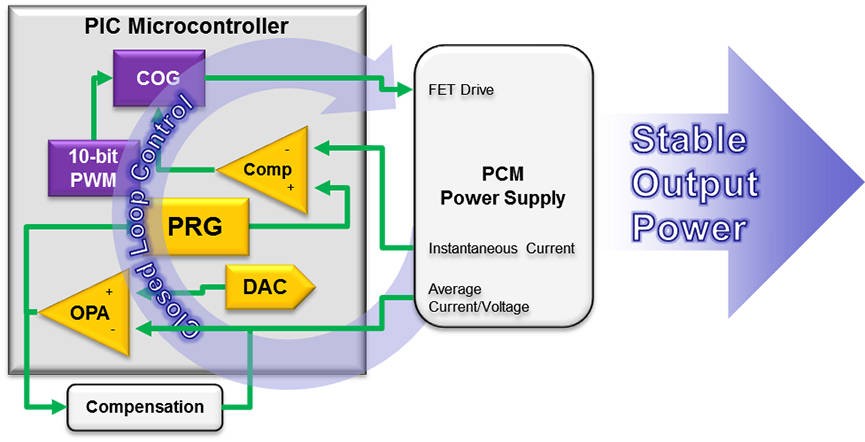

Analog Ramp Generator with Slope Compensation
Features
- Analog ramp generator (with slope compensation) for Switch Mode Power Supplies (SMPS)
- Creates independent rising and/or falling voltage ramps
- Multiple interconnects for closed loop control
- Multiple output modes
- Examples: slope, ramp, triangle
- Intelligent control of integrated analog feedback loop
Benefits
- BOM cost reduction
- Simplifies SMPS design
- Core-independent operation
- Operation while in low-power sleep
